HOBO MX1101
Bluetooth Low Energy Temperature/Relative Humidity Data Logger
เครื่องวัดและบันทึกค่าอุณหภูมิ / ความชื้น ด้วยสาย USB และBluetooth










The HOBO MX1101 data logger requires the HOBOmobile App and a compatible mobile device. The system requirements for the HOBOmobile app can be found at the bottom of our HOBOmobile software page.

Overview

Onset’s HOBO MX1101 data logger measures and transmits temperature and relative humidity data wirelessly to mobile devices via Bluetooth Low Energy (BLE) technology.

The self-contained wireless data logger, which works with Onset’s free HOBOmobile® app for logger setup and data management, enables you to access data anytime from mobile device for iOS or Android over a 100-foot range, and it requires no dedicated equipment beyond a mobile device for configuring the logger or reading out data.

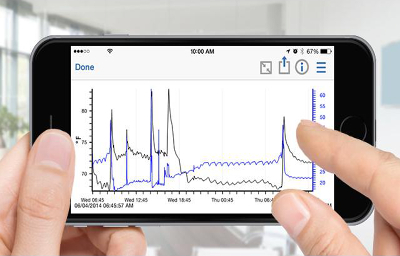

Using Onset’s free HOBOmobile® app, you can view data in graphs, check the operational status of loggers, configure alarm notifications, and share data files.


Highlighted Features
  • Wireless communication via Bluetooth Low Energy (BLE) technology
  • Easy to deploy and offload using free HOBOmobile App
  • Visual and audible high & low alarm thresholds
  • Stores 84,000 measurements
  • Accuracy: +/- 0.2C and +/- 2%RH
  • Find me/pager feature
  • Patented connectivity technology


Specifications


Temperature Sensor
Range : -20° to 70°C (-4° to 158°F)
Accuracy : ±0.21°C from 0° to 50°C (±0.38°F from 32° to 122°F), see Plot A
Resolution : 0.024°C at 25°C (0.04°F at 77°F), see Plot A
Drift : <0.1°C (0.18°F) per year
RH Sensor* :
Range : 1% to 90%
Accuracy : ±2% from 20% to 80% typical at 25°C (77°F), see Plot B
Hysteresis : ±2% RH
Resolution : 0.01% at 25°C (77°F)
Drift : <1% per year typical
Response Time
Temperature : 7:30 minutes in air moving 1 m/s (2.2 mph)
RH : 20 seconds to 90% in airflow of 1 m/s (2.2 mph)
Logger
Radio Power : 1 mW (0 dBm)
Transmission Range : Approximately 30.5 m (100 ft) line-of-sight
Wireless Data Standard : Bluetooth Smart (Bluetooth Low Energy, Bluetooth 4.0)
Logger Operating Range : -20° to 70°C (-4° to 158°F); 0 to 95% RH (non-condensing)
Logging Rate : 1 second to 18 hours
Logging Modes : Fixed interval (normal, statistics) or burst
Memory Modes : Wrap when full or stop when full
Start Modes : Immediate, push button, date & time, or next interval
Stop Modes : When memory full, push button, date & time, or after a set logging period
Restart Mode : Push button
Time Accuracy : ±1 minute per month at 25°C (77°F), see Plot C
Battery Life : 1 year, typical with logging interval of 1 minute. Faster logging and/or statistics sampling intervals, entering burst logging mode, and remaining connected with HOBOmobile will impact battery life. Excessive readouts, checking of Full Status Details, audible alarms, and paging all impact battery life. Visual alarms and other events can have a marginal impact on battery life.
Battery Type : Two AAA 1.5 V alkaline batteries, user replaceable
Memory : 128 KB (84,650 measurements, maximum)
Full Memory Download Time : Approximately 60 seconds; may take longer the further the device is from the logger
LCD : LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range
Size : 3.66 x 8.48 x 2.29 cm (1.44 x 3.34 x 0.9 in.)
Weight : 56 g (1.98 oz)
Environmental Rating : IP50
CE : The CE Marking identifies this product as complying with all relevant
directives in the European Union (EU).
