HOBO UX120-017

HOBO data loggers requires HOBOware software (USB interface cable included w/CD purchase) and a communications device. See compatible items below.

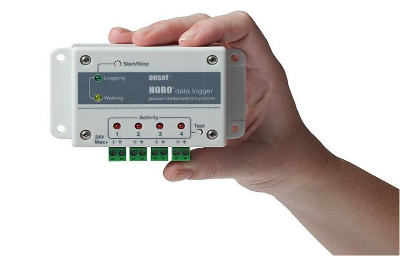

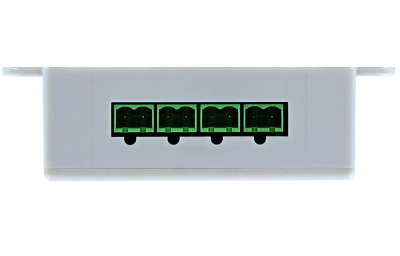

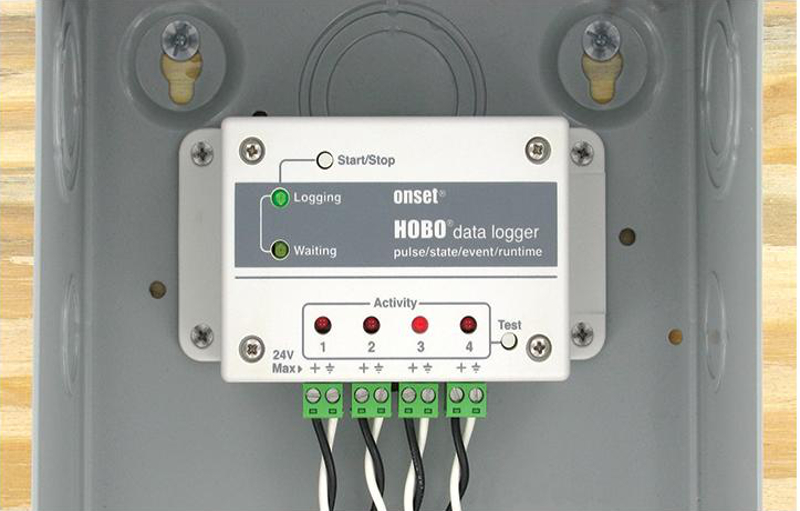

The HOBO UX120 Pulse Data Logger is a highly versatile, 4-channel energy data logger that combines the functionality of four separate data loggers into one compact unit. It enables energy management professionals – from energy auditors to building commissioners – to easily track building energy consumption, equipment runtimes, and water and gas flow rates. The HOBO UX120 Pulse Data Logger is available in a standard memory model (UX120-017) capable of 500,000 measurements and an expanded memory version (UX120-017M) capable of over 4,000,000 measurements.

Highlighted Features

• Simultaneously measures and records pulse signals, events, state changes, and runtimes
• Stores up to over 4 million measurements, enabling longer deployments with fewer site visits
• Maximum pulse rate – 120 Hz
• Pulse input range – 0 to 24VDC

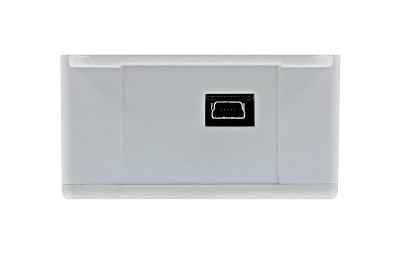

• Streamlines deployment via a range of start/stop options, logger status LEDs, and high-speed USB 2.0 data offload
• Works with Onset's Energy & Power Meter to measure Power Factor (PF), Reactive Power (VAR), Watt Hours (Wh) and more. Learn how.
• The T-VER-E50B2 Energy and Power Meter outputs (3) sets of pulses which are logged by the UX120-017. These pulses represent Watt-hours, Amp-hours, and VAR-hours. HOBOware
• oftware uses these pulse values to calulate AC Current, AC Voltage, kW, Power Factor, VARs, and VA. The formulas used in these calculations can be found here: 14993-A-Derived-Channels.zip
• Compatible with HOBOware and HOBOware Pro software for logger setup, graphing and analysis

Specifications

Inputs
External Contact Input	: Electronic solid state switch closure or logic driven digital signals to 24 V
Maximum Pulse Frequency	: 120 Hz
Maximum State, Event, Runtime Frequency	: 1 Hz
Bits	: 4–32 bits depending on pulse rate and logging interval
Maximum Pulses Per Interval	: 7,863,960 (using maximum logging rate)
Driven Logic Signal	: Input Low: ≤ 0.4 V; Input High: 3 to 24 V
Absolute Maximum Rating	: Maximum Voltage: 25 V DC Minimum Voltage: -0.3 V DC
Solid State Switch Closure	: Input Low: < 10 KΩ; Input High: > 500 KΩ
Internal Weak Pull-Up	: 100 KΩ
Input Impedance	: Solid state switch closure: 100 KΩ pull up; Driven signal: 4.5 KΩ
Minimum Pulse Width	: Contact closure duration: 500 uS; Driven logic signal: 100 uS
Lockout Time	: 0 to 1 second in 100 ms steps
Edge Detection	: Falling edge, Schmitt Trigger buffer
Preferred Switch State	: Normally open or Logic "1" state
Logging
Resolution	: Pulse: 1 pulse, Runtime: 1 second, State and Event: 1 State or Event
Logging Rate	: 1 second to 18 hours, 12 minutes, 15 seconds
Time Accuracy	: ± 1 minute per month at 25°C (77°F) (see Plot A on next page)
Battery Type	: Two AA alkaline or lithium batteries
Battery Life	: 1 year, typical with logging intervals greater than 1 minute and normally open contacts
Memory
Memory	: UX120-017: 520,192 measurements (assumes 8-bit) UX120-017M: 4,124,672 measurements (assumes 8-bit)
Download Type	: USB 2.0 interface
Download Time	: 30 seconds for UX120-017, 1.5 minutes for UX120-017M
Physical
Operating Range	: Logging: -40° to 70°C (-40° to 158°F); 0 to 95% RH (non-condensing) Launch/Readout: 0° to 50°C (32° to 122°F) per USB specification
Weight	: 149 g (5.26 oz)
Size	: 11.4 x 6.3 x 3.3 cm (4.5 x 2.5 x 1.3 inches)
Environmental rating	: IP50
	: The CE Marking identifies this product as complying with all relevant directives in the European Union (EU).
