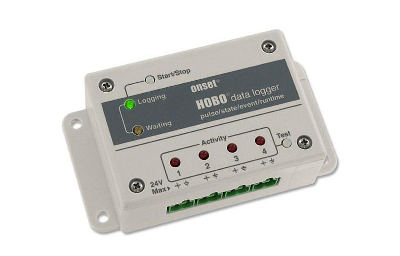

HOBO UX120-017
4-Channel Pulse Data Logger
เครื่องวัดและบันทึกค่าทางพลังงานแบบ 4 ช่องสัญญาณ







  HOBO data loggers requires HOBOware software (USB interface cable included w/CD purchase) and a communications device. See compatible items below.

Overview
The HOBO UX120 Pulse Data Logger is a highly versatile, 4-channel energy data logger that combines the functionality of four separate data loggers into one compact unit. It enables energy management professionals – from energy auditors to building commissioners – to easily track building energy consumption, equipment runtimes, and water and gas flow rates. The HOBO UX120 Pulse Data Logger is available in a standard memory model (UX120-017) capable of 500,000 measurements and an expanded memory version (UX120-017M) capable of over 4,000,000 measurements.





Highlighted Features
  • Simultaneously measures and records pulse signals, events, state changes, and runtimes
  • Stores up to over 4 million measurements, enabling longer deployments with fewer site visits
  • Maximum pulse rate – 120 Hz
  • Pulse input range – 0 to 24VDC
  • Streamlines deployment via a range of start/stop options, logger status LEDs, and high-speed USB 2.0 data offload
  • Works with Onset's Energy & Power Meter to measure Power Factor (PF), Reactive Power (VAR), Watt Hours (Wh) and more. Learn how.
    The T-VER-E50B2 Energy and Power Meter outputs (3) sets of pulses which are logged by the UX120-017. These pulses represent Watt-hours, Amp-hours, and VAR-hours. HOBOware software uses these pulse values to calulate AC Current, AC Voltage, kW, Power Factor, VARs, and VA. The formulas used in these calculations can be found here: 14993-A-Derived-Channels.zip
  • Compatible with HOBOware and HOBOware Pro software for logger setup, graphing and analysis


Specifications


Inputs
External Contact Input : Electronic solid state switch closure or logic driven digital signals to 24 V
Maximum Pulse Frequency : 120 Hz
Maximum State, Event, Runtime Frequency : 1 Hz
Bits : 4–32 bits depending on pulse rate and logging interval
Maximum Pulses Per Interval : 7,863,960 (using maximum logging rate)
Driven Logic Signal : Input Low: ≤ 0.4 V; Input High: 3 to 24 V
Absolute Maximum Rating : Maximum Voltage: 25 V DC
Minimum Voltage: -0.3 V DC
Solid State Switch Closure : Input Low: < 10 KΩ; Input High: > 500 KΩ
Internal Weak Pull-Up : 100 KΩ
Input Impedance : Solid state switch closure: 100 KΩ pull up; Driven signal: 4.5 KΩ
Minimum Pulse Width : Contact closure duration: 500 uS; Driven logic signal: 100 uS
Lockout Time : 0 to 1 second in 100 ms steps
Edge Detection : Falling edge, Schmitt Trigger buffer
Preferred Switch State : Normally open or Logic "1" state
Logging
Resolution : Pulse: 1 pulse, Runtime: 1 second, State and Event: 1 State or Event
Logging Rate : 1 second to 18 hours, 12 minutes, 15 seconds
Time Accuracy : ± 1 minute per month at 25°C (77°F) (see Plot A on next page)
Battery Type : Two AA alkaline or lithium batteries
Battery Life : 1 year, typical with logging intervals greater than 1 minute and normally open contacts
Memory
Memory : UX120-017: 520,192 measurements (assumes 8-bit)
UX120-017M: 4,124,672 measurements (assumes 8-bit)
Download Type : USB 2.0 interface
Download Time : 30 seconds for UX120-017, 1.5 minutes for UX120-017M
Physical
Operating Range : Logging: -40° to 70°C (-40° to 158°F); 0 to 95% RH (non-condensing)
Launch/Readout: 0° to 50°C (32° to 122°F) per USB specification
Weight : 149 g (5.26 oz)
Size : 11.4 x 6.3 x 3.3 cm (4.5 x 2.5 x 1.3 inches)
Environmental Rating : IP50
CE : The CE Marking identifies this product as complying with all relevant
directives in the European Union (EU).
